FM-6643-DF | Semi -Auto | 300mm/12” | Single DAF tape
Technovision Inc
This model was developed for both pre-cut and normal tape.
The industry's first universal wafer mounter, it not only serves as a dedicated wafer mounter for pre-cut or normal tape, but can also be adapted to the following uses

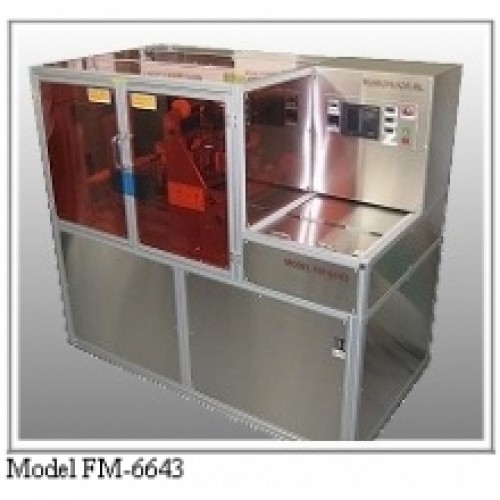

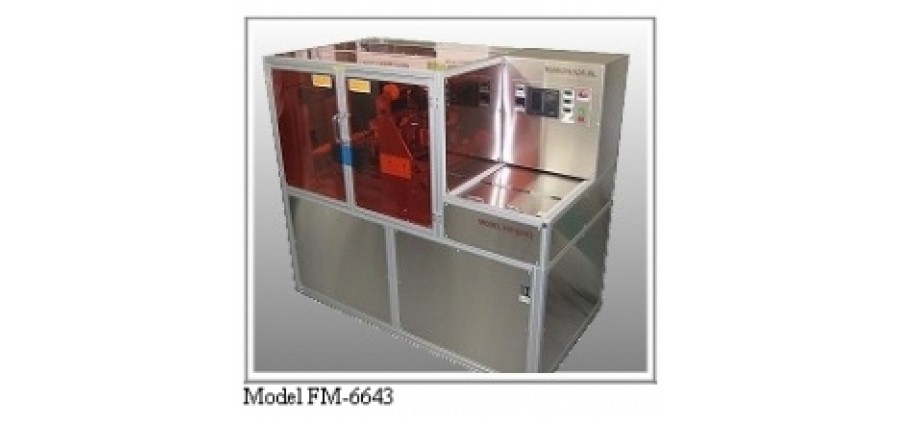

Mode FM-6643 : 300mm(12 inch) semi-automatic wafer mounter
Mode FM-6648 : 200mm( 8 inch) semi-automatic wafer mounter
|
Features
|
|
| 1 |
User-settable parameters, including application pressure, speed, and temperature
|
| 2 |
Variable application pitch for normal tape
|
| 3 |
Tension-free application
|
| 4 |
Bubble-free application
|
| 5 |
Can be customized for non-contact surface application
|
| 6 |
Equipped with measures against static electricity
|
| 7 |
Compact, light-weight, and small-footprint type
|
|
Uses
|
|
| 1 |
For dicing process with both pre-cut and normal tape
|
| 2 |
For dicing process with pre-cut tape only
|
| 3 |
For dicing process with normal tape only
|
| 4 |
For precut two-layered tape (DAF with dicing tape)
|
| 5 |
For normal two-layered tape (DAF with dicing tape)
|
| 6 |
For single DAF tape
|
| 7 |
For back grind (BG) film
|
| 8 |
For front-protection film
|
| 9 |
For rear-protection film
|
| 10 |
For functional film (resist film, CSP film sealings, underfill film, and others)
|
