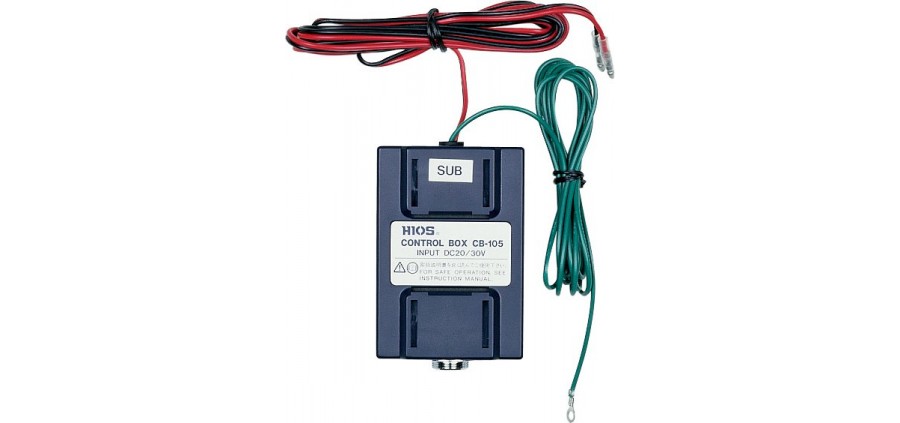

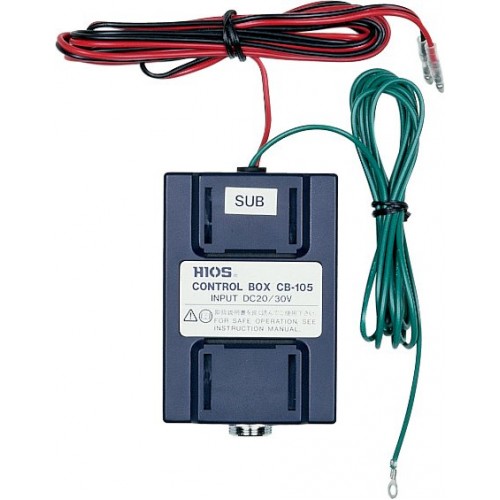

CB-105 (Control box)

Qty

Description

When you use MC-70L, you need to connect a control box (CB-105, optional) between a screwdriver and MC-70L. CB-105 is a compact control box to control the current in response to the clutch motion of a driver.

CB-105(SUB) Specification

Weight(g)	Primary input power source	input code length	External Dimensions(mm)	Accessories
240g	DC20V/31V	2m with a bullet terminal (1pc, fixed to the body)	70(W)×42(D)×100(Ｈ)mm	Mounting hardware (2pcs)

Weight(g)

Primary input power source

input code length

External Dimensions(mm)

Accessories

240g

DC20V/31V

2m with a bullet terminal (1pc, fixed to the body)

70(W)×42(D)×100(Ｈ)mm

Mounting hardware (2pcs)
